How do you size a resistance welding transformer?

How do you size a resistance welding transformer?

STEP 1
Calculate the duty cycle at 50%.

KVA sizing slide step 1

 STEP 2
With the duty cycle calculated, use step 2 to calculate the actual power required to operate at the 50% duty cycle. Then compare the values to determine if the 70KVA transformer is sufficient for the job.

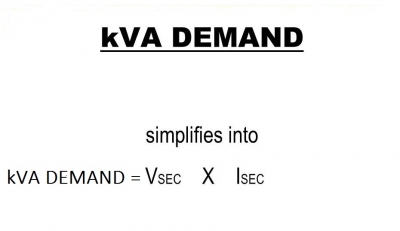

 KVA Demand rev

To get KVA demand at 50% Duty cycle we continue step 2 and calculate below.

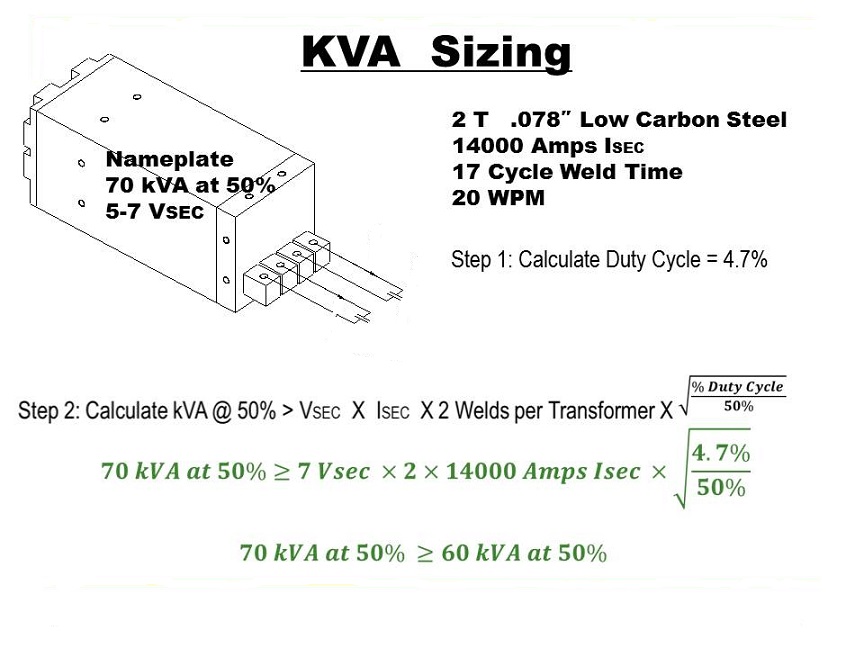

KVA sizing slide step 2

The calculation gives a requirement for a 60 KVA Demand at 50 % duty cycle which is smaller than the 70 KVA transformer available. The 70 KVA transformer is large enough for this application.

Reference:  RWMA Manual- Fourth Edition, 19-8

                    Roman Manufacturing Inc.
