How do you convert line pressure to force?

To convert incoming air pressure to the force at the electrodes is a very simple calculation. To do so you must know the line pressure and the diameter of the air cylinder.

 The formula and calculation is shown below:

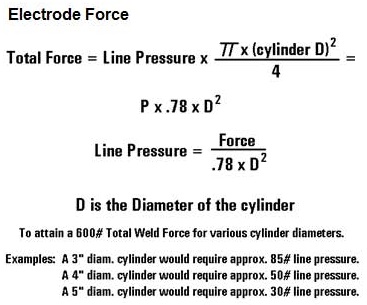

CALCULATE FORCE VS LINE PRESSURE

References: RWMA - Resistance Welding Manual 4th Edition
